If you are asking what is the best undercounter ice maker, the Scotsman Brilliance Nugget Ice Machine is the top choice for homes because it produces high-quality chewable ice. It makes 80 pounds of ice daily, provided the room temperature stays at or below 80 degrees Fahrenheit.
The success of your installation depends on the drain line configuration. Because these machines are gravity-fed, they must sit above your home’s drain pipe. If your drain is higher than the machine’s outlet, you’ll need a factory-installed drain pump to move water upward. A common mistake is ignoring clearance requirements; most units need at least two inches of space on the sides for airflow. Without this, the internal compressor overheats and shuts down prematurely, leading to expensive service calls.
Setting up your undercounter ice maker

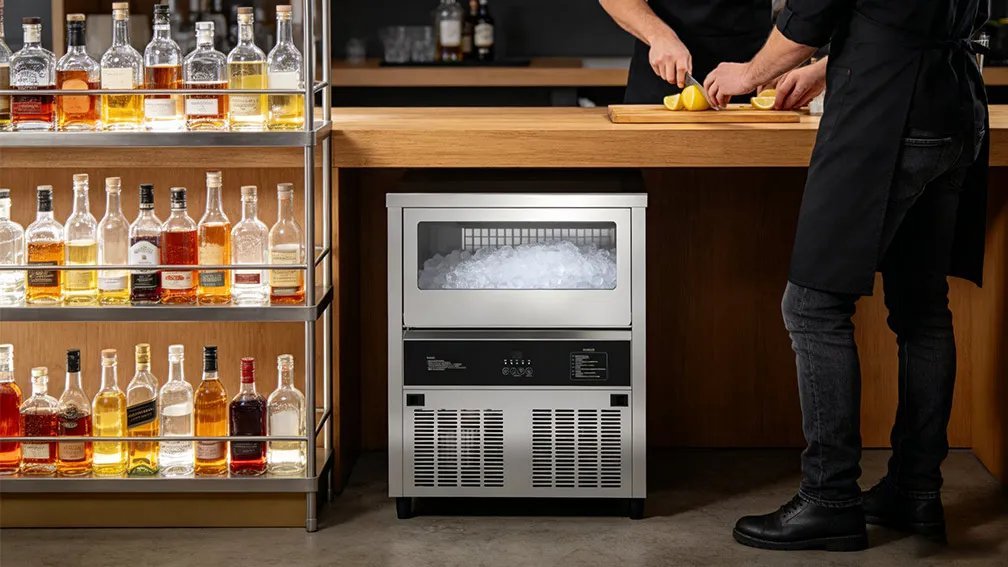

- Measure the height, width, and depth of your cabinet opening to ensure the unit fits with the required ventilation clearance.
- Connect the unit to a dedicated cold water supply line using a quarter-inch copper or braided stainless steel tubing kit.
- Install a water filtration system between the supply line and the machine to remove sediment and chlorine, which helps keep the internal evaporator clean.
- Position the drain hose so it maintains a downward slope of at least one-quarter inch per foot toward the floor drain.
- If the drain is located higher than the machine base, install an approved external drain pump to lift the water away.
- Plug the machine into a dedicated 15-amp grounded electrical outlet to prevent circuit overloads.
Tip: Never use a garden hose for the water supply, as these aren’t rated for potable water and can leach chemicals into your ice.
Tip: If you’re unsure about plumbing codes in your area, contact a licensed plumber to verify your setup meets local NSF International food safety standards.
How long it takes
The time to fill your bin depends on the ambient temperature and water temperature.
| Situation | How long | What changes it | What to watch for |
|---|---|---|---|
| First start-up | 6–12 hours | Ambient heat | Bin sensor trip |
| Full bin refill | 4–8 hours | Water temp | Ice bridge formation |
| After cleaning | 2–4 hours | Sanitizer rinse | Scale buildup |
If the bin remains empty after 24 hours, check if the water supply valve is fully open and ensure the ambient room temperature isn’t exceeding 90 degrees Fahrenheit.
How to tell when it’s done
You can confirm the machine is working by observing the ice production cycle. A healthy machine drops fresh ice into the bin every 15 to 30 minutes. The ice should appear clear and uniform in shape. If the ice looks cloudy or tastes metallic, the filtration system likely needs a new cartridge. Check the bin sensor by placing a small object in front of it; the machine should stop production within one cycle. If it continues to run, the sensor is faulty. Consult your owner’s manual for the specific diagnostic light patterns provided by the manufacturer.
Mistakes that ruin it
- Neglecting the water filter: Failing to change the filter regularly causes mineral scale to build up on the evaporator plate. Replace the filter on schedule to ensure your pump doesn’t seize from calcium deposits.
- Blocking the front vents: Placing items in front of the intake or exhaust vents restricts airflow and forces the unit to work harder. Always leave the front grill clear so the compressor can release heat efficiently.
- Using hard water without softening: Hard water creates heavy scale that ruins internal seals and reduces output. If your home has hard water, install a whole-house softener or a dedicated ice machine water treatment system.
- Ignoring the drain slope: If the drain hose is flat or tilted upward, water will back up into the bin and melt the ice. Ensure the hose has a consistent downward pitch to allow gravity to clear the water.
Frequently asked questions
Can I install an undercounter ice maker myself?
Yes, you can install the unit yourself if you’re comfortable with basic plumbing and electrical work. You must ensure the water supply line is tight and the drain line has a proper slope. If you aren’t confident with water connections, hire a professional to avoid potential water damage.
Why is my ice maker noisy?
It’s normal for ice makers to produce humming sounds from the compressor and clicking noises when the bin fills. If you hear a loud grinding sound, the water supply might be low or the evaporator needs cleaning. Check the water pressure and clear any debris from the inlet valve.
How long does an undercounter ice maker last?
Most residential undercounter ice makers last between 7 and 10 years with regular maintenance. This lifespan assumes you clean the condenser coils regularly and replace the water filter as recommended. If you ignore the cleaning schedule, the mechanical components will fail significantly sooner.
Is it safe to drink the water from an ice maker?
Yes, it’s safe as long as you use a food-grade water line and a certified filtration system. Always verify that your supply lines are rated for potable water. If your machine hasn’t been used for several weeks, run two full cycles of ice and discard them before using any for drinks.
What happens if the power goes out?
The unit will stop producing ice immediately and the current batch will begin to melt. Once the power returns, the machine will restart automatically. If the power was out and the ice has melted, discard all ice in the bin, as it may have become contaminated during the temperature shift.
Final Thoughts
Investing in a high-quality machine ensures you’ll always have perfect ice ready for your favorite drinks. Before you make your final choice, check your kitchen’s available space and water line access to confirm everything fits. You won’t regret upgrading your home bar once you’re enjoying that refreshing, restaurant-style crunch every day.
